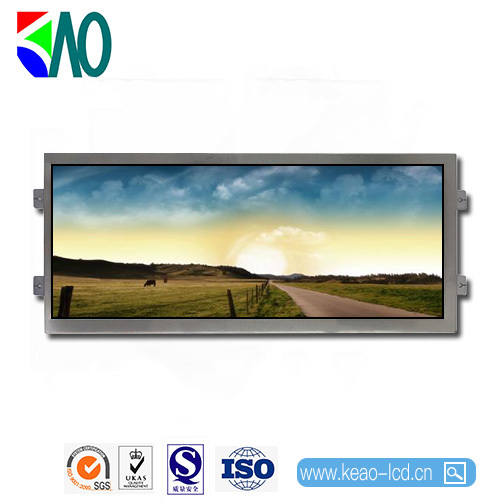

IPS lcd module，1920*RGB*720 resolution，12.3 inch with LVDS interface
IPS lcd module，1920*RGB*720 resolution，12.3 inch with LVDS interface

IPS lcd module，1920*RGB*720 resolution，12.3 inch with LVDS interface

Classify:

Special strip LCD

Keyword:

IPS lcd module，1920*RGB*720 resolution，12.3 inch with LVDS interface（Design according to customer requirements）

Inquiry
  • Description
  • Model: KAO-123HN-NC01
    Specifications: 12.3 inch
    Dimensions (mm):312.40(W)*134.86(H)*7.3(T)
    Display area (mm):292.32(W)×109.62(H)
    Resolution: 1920*RGB*720
    With /Without TSP：NC（Without TP /With RTP）
    Brightness: 1000 cd/m2
    Backlight: LED
    Working temperature (°C): -20-60
    Storage temperature (°C): -30-70
    Driver IC: TBD
    Interface: 2 port LVDS
    Uses: display module
    Shipping status: LCM
    Module life (h): 10000-15000
