Semi reflective and semi transparent（Visible in the sun） lcd module 240*RGB*320 resolution 2.2 inch with MIPI interface

Inquiry

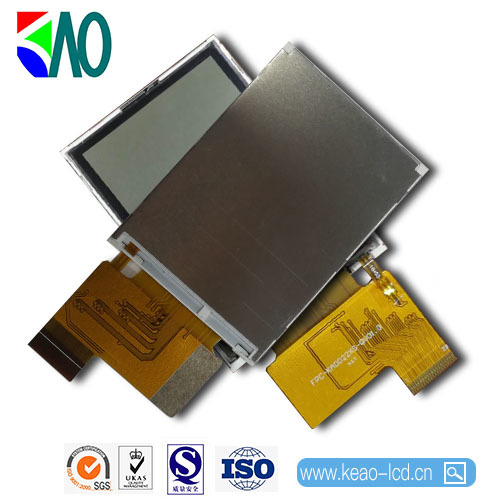

KAO-022XS-QV01 01.jpg

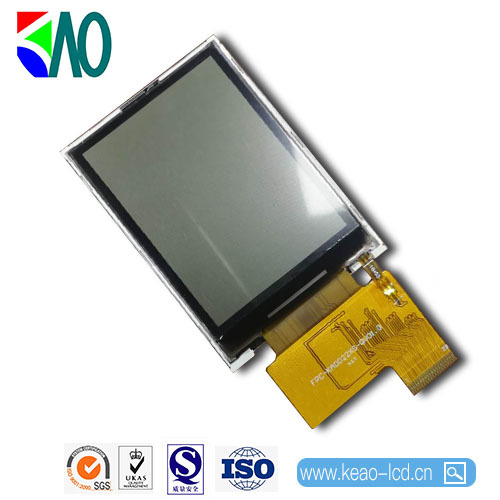

KAO-022XS-QV01 02.jpg
  • Description

  • Model: KAO-022XS-QV01
    Specifications: 2.2 inch
    Dimensions (mm):40.60(H)×56.60(V)×2.7(D)mm
    Display area (mm):35.24(H)×46.52(V)mm
    Resolution: 240*RGB*320
    With /Without TSP：NC（Without TP /With RTP）
    Type: Semi reflective and semi transparent（Visible in the sun）
    Brightness: 300 cd/m2
    Backlight: LED
    Working temperature (°C): -30-70
    Storage temperature (°C): -40-80
    Driver IC: ST7789V-G4
    Interface: SPI+RGB interface
    Uses: display module
    Shipping status: LCM
    Module life (h): 10000-15000
