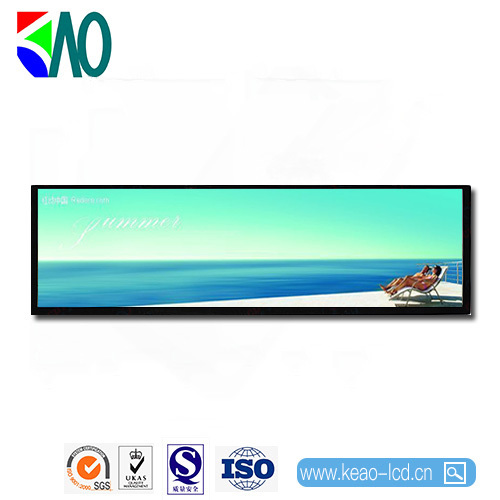

TFT lcd module，1280*RGB*320 resolution，8.8 inch with LVDS interface
TFT lcd module，1280*RGB*320 resolution，8.8 inch with LVDS interface

TFT lcd module，1280*RGB*320 resolution，8.8 inch with LVDS interface

Classify:

Special strip LCD

Keyword:

TFT lcd module，1280*RGB*320 resolution，8.8 inch with LVDS interface（Design according to customer requirements）

Inquiry
  • Description
  • Model: KAO-088HN-NC01
    Specifications: 8.8 inch
    Dimensions (mm):229.66(W)*67.50(H)*3.5(T)
    Display area (mm):219.96(W)×54.24(H)
    Resolution: 1280*RGB*320
    With /Without TSP：NC（Without TP /With RTP）
    Brightness: 400 cd/m2
    Backlight: LED
    Working temperature (°C): -20-60
    Storage temperature (°C): -30-70
    Driver IC: ILI5802-9G+ILI6127M2-9G
    Interface: LVDS
    Uses: display module
    Shipping status: LCM
    Module life (h): 10000-15000
