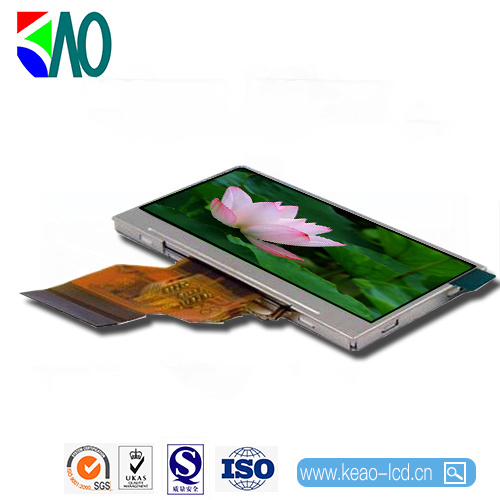

TFT lcd module，320*RGB*120 resolution，2.9 inch with RGB/SPI/MCU interface
TFT lcd module，320*RGB*120 resolution，2.9 inch with RGB/SPI/MCU interface

TFT lcd module，320*RGB*120 resolution，2.9 inch with RGB/SPI/MCU interface

Classify:

Special strip LCD

Keyword:

TFT lcd module，320*RGB*120 resolution，2.9 inch with RGB/SPI/MCU interface（Design according to customer requirements）

Inquiry
  • Description
  • Model: KAO-029MS-NC01
    Specifications: 2.9 inch
    Dimensions (mm):76.90(W)*37.72(H)*3.26(T)
    Display area (mm):70.08(W)×26.28(H)
    Resolution: 320*RGB*120
    With /Without TSP：NC（Without TP /With RTP）
    Brightness: 300 cd/m2
    Backlight: LED
    Working temperature (°C): -20-60
    Storage temperature (°C): -30-70
    Driver IC: SSD2219
    Interface: RGB/SPI/MCU
    Uses: display module
    Shipping status: LCM
    Module life (h): 10000-15000
