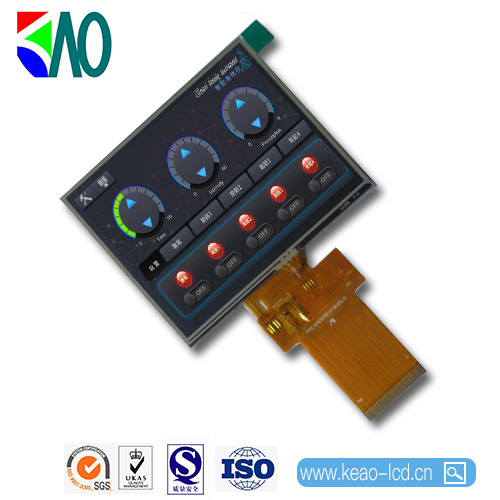

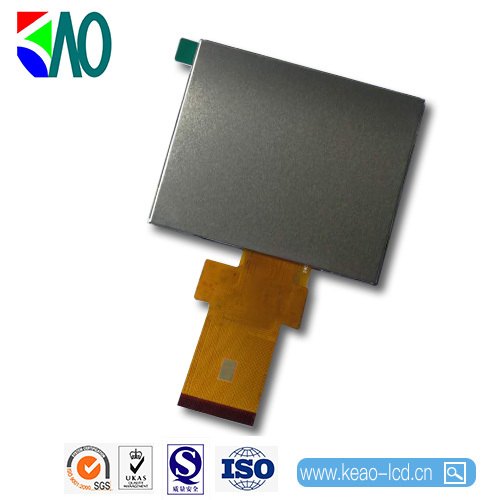

TFT lcd module 320*RGB*240 resolution 3.5 inch with RGB interface
Classify:
Keyword:
TFT lcd module 320*RGB*240 resolution 3.5 inch with MIPI interface（Design according to customer requirements）
Inquiry
- Description
-
Model: KAO-035CH-QV05
Specifications: 3.5 inch
Dimensions (mm):76.84(H)×63.84(V)×4.47(D)mm
Display area (mm):70.08(H)×52.56(V)mm
Resolution: 320*RGB*240
With /Without TSP：RTP（Without TP /With RTP）
Type: TFT Normally white
Brightness: 350 cd/m2
Backlight: LED
Working temperature (°C): -20-60
Storage temperature (°C): -30-70
Driver IC: HX8238A
Interface: RGB
Uses: display module，POS machine
Shipping status: LCM
Module life (h): 10000-15000
