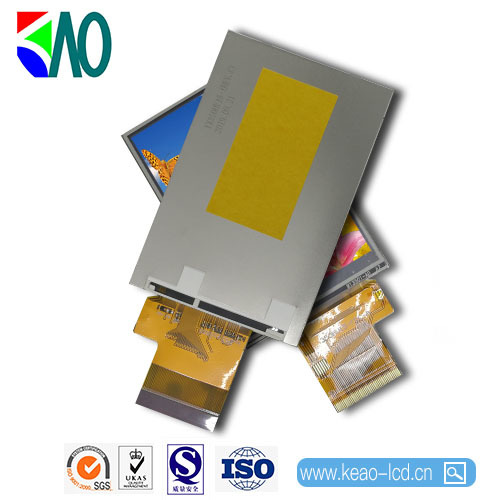

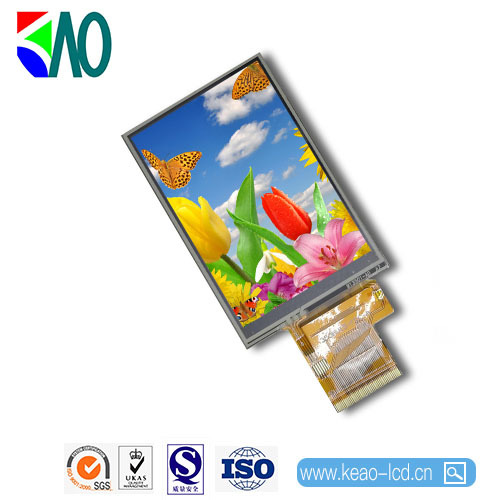

TFT lcd module 320*RGB*480 resolution 3.5 inch with MCU interface
Classify:
Keyword:
Special strip LCD
TFT lcd module 320*RGB*480 resolution 3.5 inch with MCU interface（Design according to customer requirements）
Inquiry
- Description
-
Model: KAO-035CI-HV05
Specifications: 3.5 inch
Dimensions (mm):55.7(H)×85.1(V)×3.8(D)mm
Display area (mm):48.96(H)×73.44(V)mm
Resolution: 320*RGB*480
With /Without TSP：RTP（Without TP /With RTP）
Type: TFT Normally white
Brightness: 250 cd/m2
Backlight: LED
Working temperature (°C): -20-60
Storage temperature (°C): -30-70
Driver IC: ILI9488
Interface: MCU
Uses: display module，POS machine，3D printer
Shipping status: LCM
Module life (h): 10000-15000
