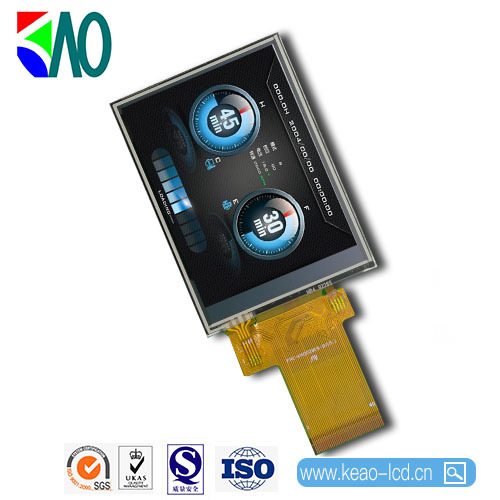

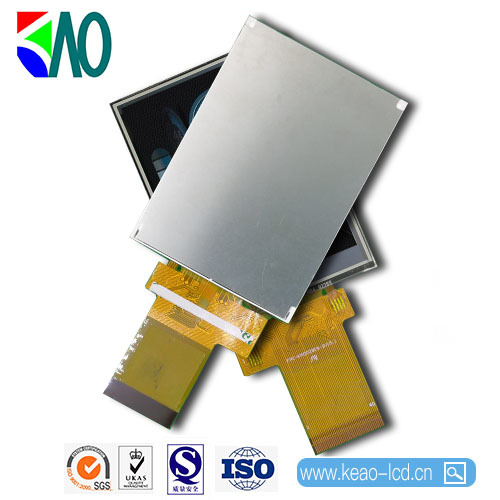

TFT lcd module 240*RGB*320 resolution 2.8 inch with MCU interface
TFT lcd module 240*RGB*320 resolution 2.8 inch with MCU interface

TFT lcd module 240*RGB*320 resolution 2.8 inch with MCU interface

Classify:

TFT LCD Module

Keyword:

Special strip LCD

TFT lcd module 240*RGB*320 resolution 2.8 inch with MCU interface（Design according to customer requirements）

Inquiry
  • Description

  • Model: KAO-028IS-QV15
    Specifications: 2.8 inch
    Dimensions (mm):50.0(H)×69.2(V)×2.2(D)mm
    Display area (mm):43.2(H)×57.6(V)mm
    Resolution: 240*RGB*320
    With /Without TSP：RTP（Without TP /With RTP）
    Type: TFT Normally white
    Brightness: 350 cd/m2
    Backlight: LED
    Working temperature (°C): -20-60
    Storage temperature (°C): -30-70
    Driver IC: ST7789V
    Interface: MCU
    Uses: display module，POS machine，3D printer
    Shipping status: LCM
    Module life (h): 10000-15000
