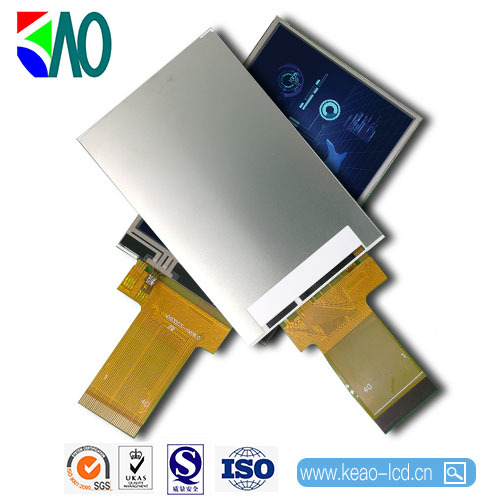

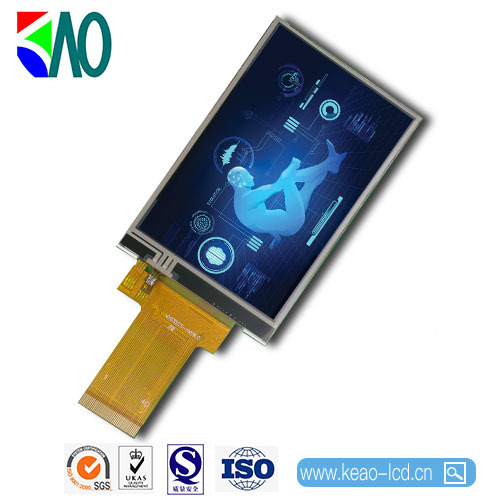

TFT lcd module 320*RGB*480 resolution 3.5 inch with MCU interface
TFT lcd module 320*RGB*480 resolution 3.5 inch with MCU interface

TFT lcd module 320*RGB*480 resolution 3.5 inch with MCU interface

Classify:

TFT LCD Module

Keyword:

Special strip LCD

TFT lcd module 320*RGB*480 resolution 3.5 inch with MCU interface（Design according to customer requirements）

Inquiry
  • Description

  • Model: KAO-035CS-HV06
    Specifications: 3.5inch
    Dimensions (mm):54.5(H)×84.71(V)×3.29(D)mm
    Display area (mm):48.96(H)×73.44(V)mm
    Resolution: 320*RGB*480
    With /Without TSP：RTP（Without TP /With RTP）
    Type: TFT Normally white
    Brightness: 250cd/m2
    Backlight: LED
    Working temperature (°C): -20-60
    Storage temperature (°C): -30-70
    Driver IC: ST7796S
    Interface: MCU
    Uses: display module，POS machine，3D printer
    Shipping status: LCM
    Module life (h): 10000-15000
