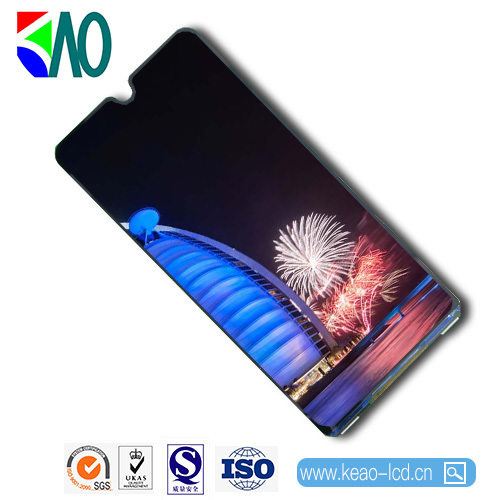

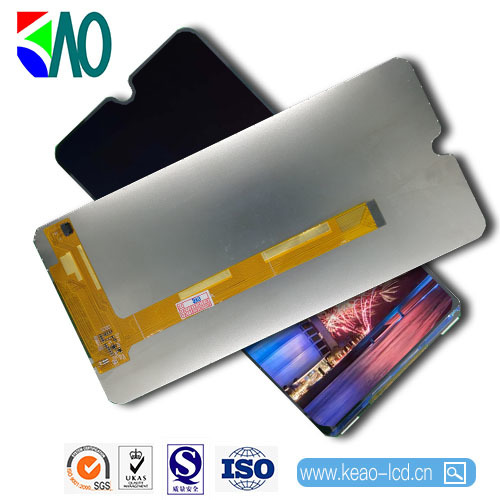

IPS lcd module 1080*RGB*2244 resolution 7.12 inch with MIPI interface
Classify:
Keyword:
IPS lcd module with RGB interface
IPS lcd modulewith LVDS interface
Special strip LCD
IPS LCD Module
Introducing the latest addition to our display technology lineup - the IPS LCD module with LVDS interface products. This cutting-edge module is designed to deliver exceptional image quality and performance, making it an ideal choice for a wide range of applications including gaming consoles, industrial machinery, medical equipment, and more.
Inquiry
- Description
-
Introducing the latest addition to our display technology lineup - the IPS LCD module with LVDS interface products. This cutting-edge module is designed to deliver exceptional image quality and performance, making it an ideal choice for a wide range of applications including gaming consoles, industrial machinery, medical equipment, and more.
The IPS (In-Plane Switching) technology ensures that users enjoy stunning visuals from virtually any angle, thanks to its superior viewing angles and consistent color reproduction. The LCD module also boasts a high contrast ratio and low power consumption, ensuring that your device runs efficiently without sacrificing on display quality.
The LVDS (Low Voltage Differential Signaling) interface provides a robust and reliable connection between the display module and your device's motherboard. This interface offers high-speed data transmission with minimal electromagnetic interference, resulting in clearer images and reduced noise levels.
Our IPS LCD module with LVDS interface products come equipped with various features such as touchscreen capabilities, full HD resolution, and support for multiple input signals. They are available in different sizes and configurations to meet your specific needs and requirements.
Invest in our IPS LCD module with LVDS interface products today and experience the future of display technology. With their unparalleled performance, durability, and flexibility, these modules are sure to exceed your expectations and take your device's visual capabilities to the next level.
Model: KAO-071AI-FF02
Specifications: 7.12 inch
Dimensions (mm):80.31(H)×168.76(V)×1.45(D)mm
Display area (mm):78.41(H)×162.91(V)mm
Resolution: 1080*RGB*2244
With /Without TSP：NC（Without TP /With RTP）
Type: IPS Normally black
Brightness: 350 cd/m2
Backlight: LED
Working temperature (°C): -20-60
Storage temperature (°C): -30-70
Driver IC: ILI7807D
Interface: MIPI
Uses: display module
Shipping status: LCM
Module life (h): 10000-15000
