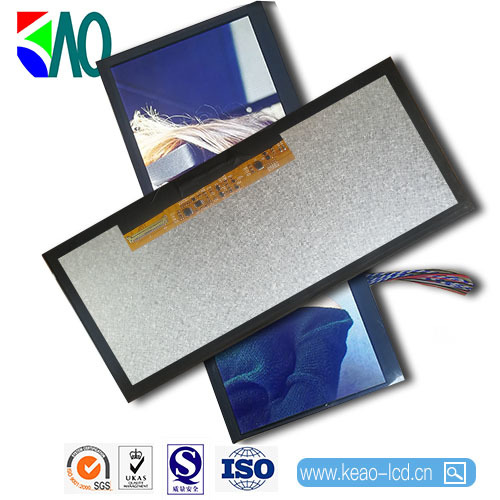

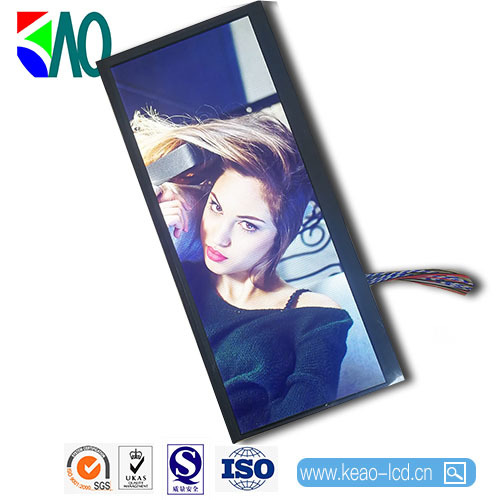

IPS lcd module 1024*RGB*400 resolution 9.36 inch with 40pin LVDS interface
IPS lcd module 1024*RGB*400 resolution 9.36 inch with 40pin LVDS interface

IPS lcd module 1024*RGB*400 resolution 9.36 inch with 40pin LVDS interface

Classify:

Special strip LCD

Keyword:

IPS lcd module with RGB interface

IPS lcd modulewith LVDS interface

IPS LCD Module

IPS lcd module 1024*RGB*400 resolution 9.4 inch with 40pin LVDS interface（Design according to customer requirements）

Inquiry
  • Description

  • Model: KAO-094QE-RD08
    Specifications: 9.4 inch
    Dimensions (mm): 236.7 (W)*102(H)*4.5(T)
    Display area (mm):222.72(W)*85(H)
    Resolution: 1024*RGB*400
    With /Without TSP：NC（Without TP /With RTP）
    Type: IPS Normally black
    Brightness: 450cd/m2
    Backlight: LED
    Working temperature (°C): -20-60
    Storage temperature (°C): -30-70
    Driver IC:
    Interface: 40pin LVDS
    Uses: Vehicle use ，Smart home ，Industry etc.
    Shipping status: LCM
    Module life (h): 10000-15000
