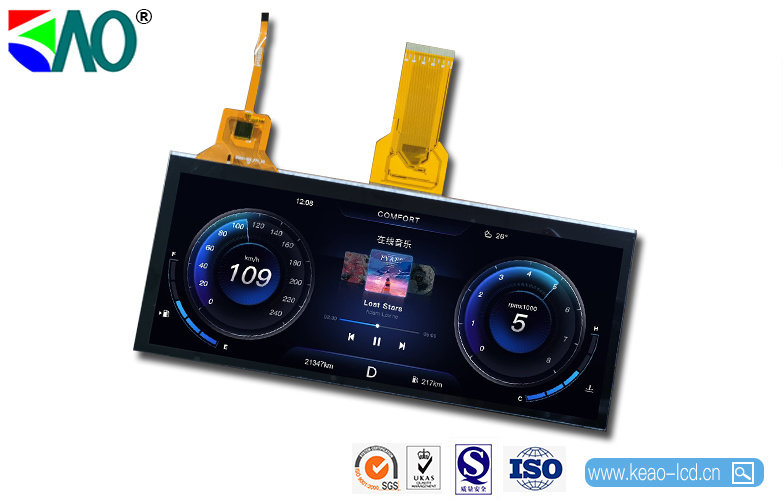

IPS lcd module 1024*RGB*400 resolution 9.4 inch 50pin with RGB interface
IPS lcd module 1024*RGB*400 resolution 9.4 inch 50pin with RGB interface

IPS lcd module 1024*RGB*400 resolution 9.4 inch 50pin with RGB interface

Classify:

Special strip LCD

Keyword:

IPS lcd module with RGB interface

IPS lcd modulewith LVDS interface

IPS LCD Module

IPS lcd module 1024*RGB*400 resolution 9.4 inch with RGB interface（Design according to customer requirements）

Inquiry
  • Description

  • Model: KAO-094HE-RD07
    Specifications: 9.36 inch
    Dimensions (mm):235(H)×97.96(V)×4.5(D)mm
    Display area (mm):222.72(H)×83.52(V)mm
    Resolution: 1024*RGB*400
    With /Without TSP：NC（Without TP /With RTP）
    Type: IPS Normally black
    Brightness: 450 cd/m2
    Backlight: LED
    Working temperature (°C): -20-70
    Storage temperature (°C): -30-80
    Driver IC:
    Interface: RGB
    Uses: display module，Car dial，
    Shipping status: LCM
    Module life (h): 10000-15000
