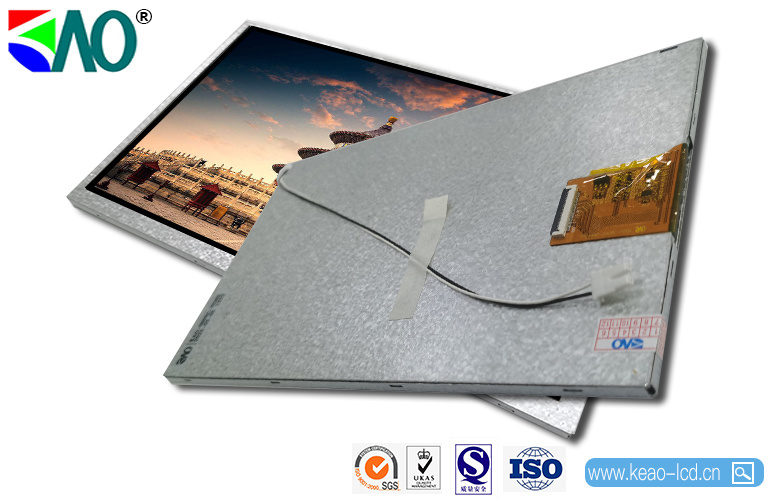

IPS lcd module 720*RGB*1280 resolution 9.0 inch 30pin with MIPI interface
IPS lcd module 720*RGB*1280 resolution 9.0 inch 30pin with MIPI interface

IPS lcd module 720*RGB*1280 resolution 9.0 inch 30pin with MIPI interface

Classify:

Special strip LCD

Keyword:

IPS lcd module with RGB interface

IPS lcd modulewith LVDS interface

IPS LCD Module

IPS lcd module 720*RGB*1280 resolution 9 inch with MIPI interface（Design according to customer requirements）

Inquiry
  • Description

  • Model: KAO-090BC-HD02
    Specifications: 9.0 inch
    Dimensions (mm): 210.7 (W)*126.5(H)*5.0(T)
    Display area (mm):196.61(W)*114.05(H)
    Resolution: 270*RGB*1280
    With /Without TSP：NC（Without TP /With RTP）
    Type: IPS Normally black
    Brightness: 380cd/m2
    Backlight: LED
    Working temperature (°C): -20-60
    Storage temperature (°C): -30-70
    Driver IC:
    Interface: 30pin MIPI
    Uses: Car display ，Smart home ，Industry etc.
    Shipping status: LCM
    Module life (h): 10000-15000
